pcDI®

Part number: PCDI

The Whirlwind pcDI is perfect for interfacing the outputs of CD players, computer sound cards, iPODs® / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment.

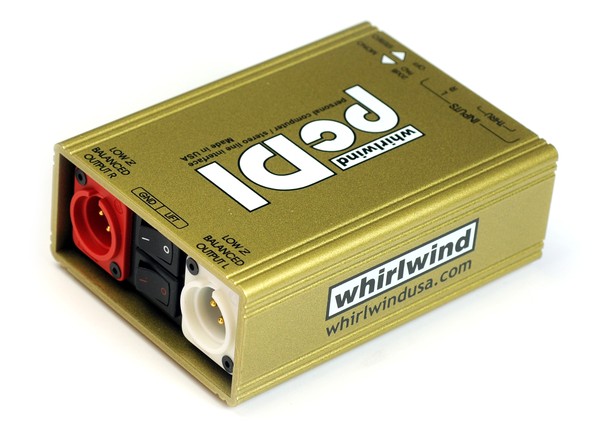

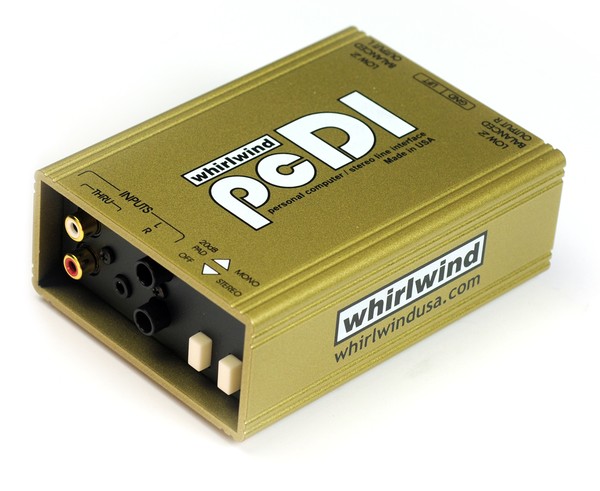

This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.

https://youtu.be/7BTslnqdi0U

* Type: Passive

Features:

* Color coded RCA phono in / through jacks

* 3.5 mm input jack

* 1/4" TS input jacks

* Color coded XLR output jacks

* Ground Lift switch to help eliminate hum and buzz

* Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs

* 20dB pad switch for connection to "hot" input signals

* Uses Whirlwind's TRHL-M transformers with metal shield

Model # - PCDI

* Impedance Ratio (input to output, per channel): 133:1

* Frequency Response: 20Hz-20kHz ±1dB

* Level Change (input to output): -20dB (pad out), -40dB (pad in)
