DIRECT-JT

Part number: DIRECT-JT

Our top-of-the-line passive DI features the Jensen JT-DB-EPC transformer - world renown for wide frequency response and superior noise rejection characteristics. Extruded aluminum housing with recessed switches provides expected Whirlwind durability.

* Type: Passive

Features include:

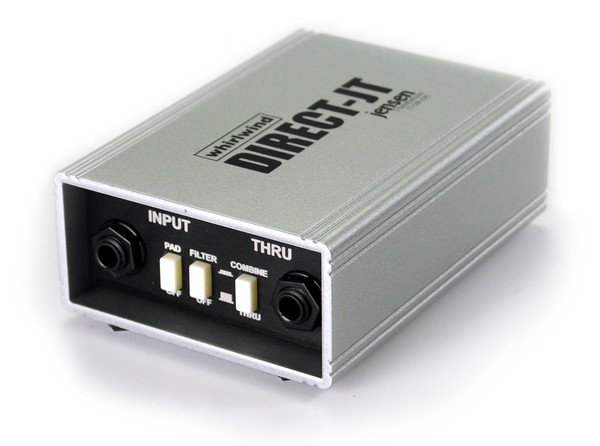

* 1/4" input jacks can be used as "INPUT / THRU" or they may be combined with the "COMBINE" pushbutton to safely sum stereo feeds to a single channel.

* "FILTER / OFF" button engages a high cut filter to reduce amplifier noise.

* "PAD" button engages 15dB pad for reducing hot input levels.

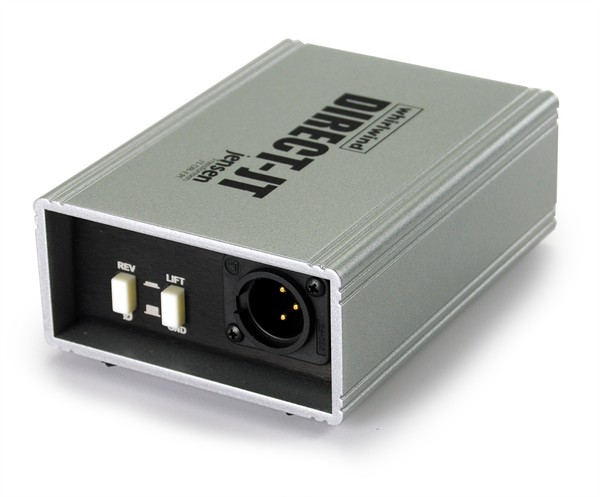

* "REV / Ø" button reverses the polarity from pin 2 hot to pin 3 hot for correcting non-standard equipment and mis-wired cables or for creating special effects.

* "LIFT / GND" button to help eliminate hum and buzz.

* Impedance Ratio : 200k:1.5k

* Freq. Response : 20Hz-20kHz re:1kHz, -0.08dB / -0.07dB

* THD @ 20Hz : 0.036

* THD @ 1kHz : less than 0.001

* -3dB BW : 100kHz
