DIRECT2-JT

Part number: DIRECT2-JT

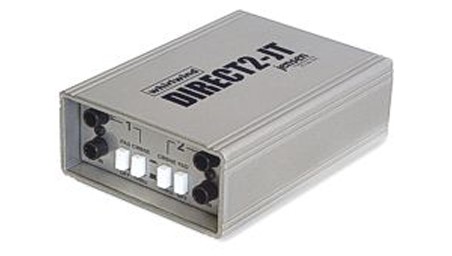

The DIRECT2-JT is Whirlwind's premium Dual Direct box, built with Jensen transformers. Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc. when lowest noise and widest frequency response are required.

* Type: Passive

Each section features:

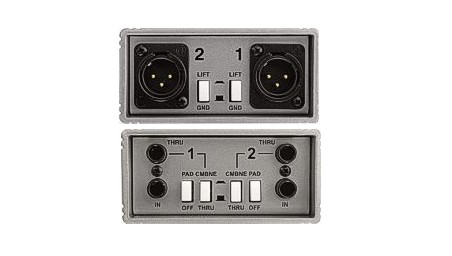

* 1/4" parallel wired IN / THRU jacks, or may be converted to dual inputs with handy COMBINE buttons.-20dB pad button for connection to "hot" input signals

* Ground lift button to help eliminate hum and buzz

* Uses Jensen JT-DB-EPC transformers

* The input and output grounds of each section are isolated from each other. This allows the DIRECT2-JT to be used as if it were two completely separate DIs without fear of creating ground loop interaction.

* Impedance Ratio: 133:1

* Frequency Response: 20Hz-20kHz re:1kHz, -0.08dB / -0.07dB

* THD @ 20Hz: 0.036

* THD @ 1kHz: less than 0.001

* -3dB BW: 100kHz
