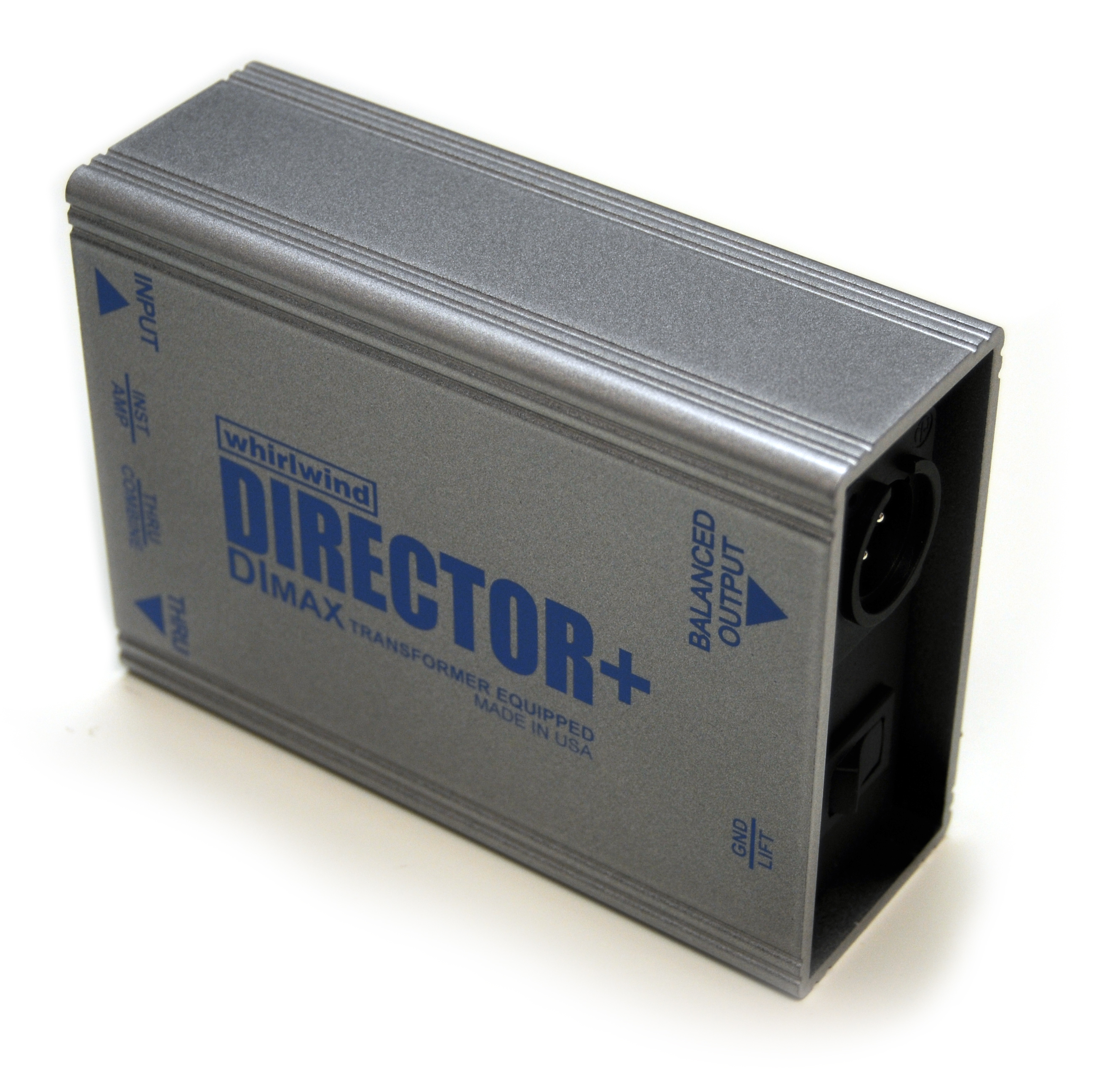

Director Plus

Part number: DIR

Whirlwind engineers out to a premium quality Direct Box transformer that would rival the performance of DIs costing many times more. The result is the DImax transformer that is now found in the Whirlwind Director .

* Type: Passive

This premium direct box has all the features of the tried and true Director:

* 1/4" parallel wired in/out jacks

* Ground Lift switch to help eliminate hum and buzz

* 30dB pad switch for selecting between line/instrument or speaker level input signals

* Switchable high cut filter to eliminate amplifier noise

* DImax transformer with dual Faraday shields and extended frequency response

DIMAX per Spec

* Freq Resp 20 Hz : -0.03 dB

* Freq Resp 20 kHz : -0.09 dB

* THD @ 20Hz : 0.03

* THD @ 1 kHz : 0.001
